ah!UM
panoramah! Ultra-Minimalist is based on the Vacuum Glass. This technology allows 12mm thick glass to achieve quadruple glass performance and by reducing glass thickness the overall aluminium structure of the window diminishes proportionally, resulting in an extremely slim system. Also, by using Vacuum glass, the vertical sightlines are reduced to an astonishing 15mm, even less than the initial systems based on standard double glass. This system can achieve surfaces of up to 5m2.
USE
external partitions
buildings in cold climates

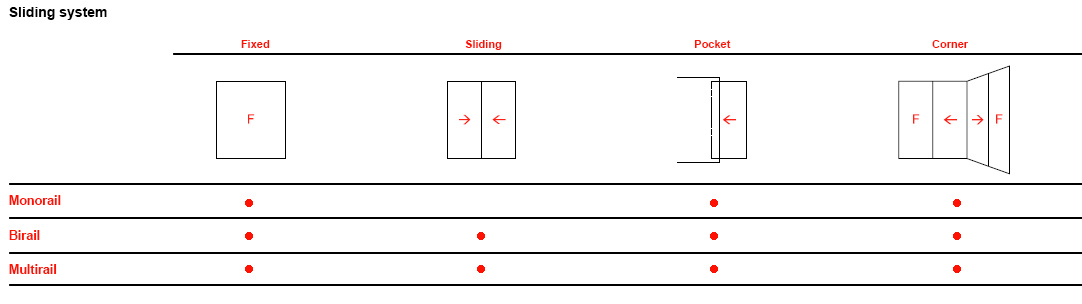

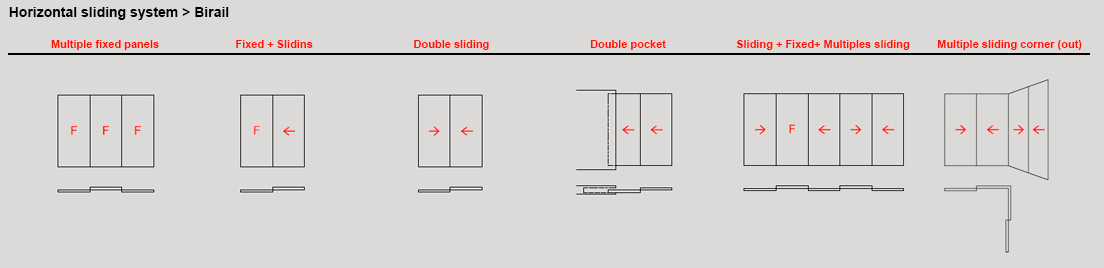

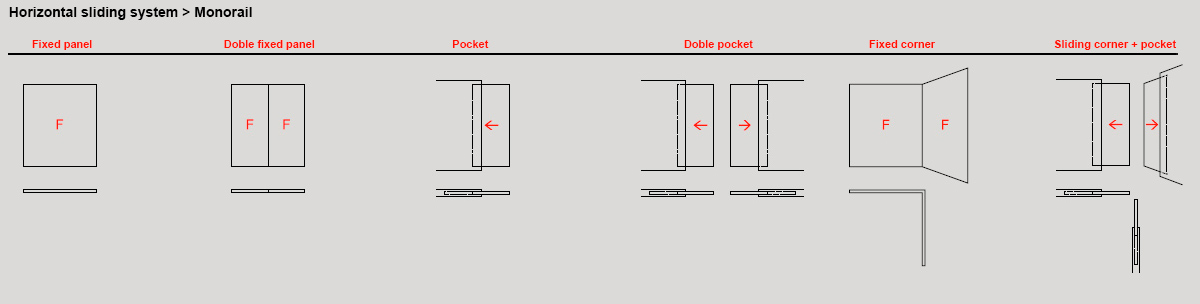

OPENING SOLUTIONS
sliding
fixed
corner
pocket
MAXIMUM AREA PANEL
5m2
MAXIMUM NO. RAILS
limitless
SOUND INSULATION
37dB
LOCKS
key lock
one point latch
| Main dimensions | ||
|---|---|---|
| Vertical profile | 18mm | |
| Max. leaf height | 3000mm | |
| Max. leaf width | 3000mm | |
| Max. weight | Up to 250 Kg./glass panel | |
| Max. glazed area | Vacuum glazing | up to 5 m2 |
| Glass thickness | 12mm | |
| Performance | |
|---|---|
| Light transmission | up to 98% |
| Thermal coefficient | Uw=0.8W/m2.K (Ug=0.48W/m2.K |
| Security | RC2 /WK2 |
| Sound insulation | 37dB |
| Water tightness | Class 8A |
| Air tightness | Class 4 |
| Wind tightness | Class A3 |
| Construction | |
|---|---|
| Finishes | All panoramah! System series guarantee that the following finishes are carried out by duly certified entities, according to QUALICOAT and QUALANOD directives: Lacquered RAL, Lacquered PVDS, Anodized, Satin, Polished and Repellent. |
| Add-ons | insect screens / balustrade / integrated blind system / heated glass / intrusion detectors |
| Motorisation | Our motorisation system can be adapted to all sliding or opening systems allowing a full integration with minimum interference architectural design with a simplified and very quiet opening. |
Sliding birail common sections (scale 1:3)
